DMM Rigging Hub – Large

Home / Protection & Hardware / Rigging Plates
  • Trango Stratus Bouldering Pad -Ropes Sales 94100 StratusCrashpad MainImage WebRez Square 2048x rsz 13222.1651796543
  • Black Diamond Index - Left (Fall 2022) -Ropes Sales 620003 620004 index 2 1 47697.1626822012
Sale!
DMM Rigging Hub - Large

$264.95 Original price was: $264.95.$98.99Current price is: $98.99.

Buy Now
SKU: 10818 Categories: Protection & Hardware, Rigging Plates Tags: DMM, Rigging Plates
  • Buy with Peace of Mind
  • The home of quality products.
  • Experience the Best Quality
  • Your satisfaction is 100% guaranteed.
Browse
  • Carabiners & Quickdraws
    • Locking Carabiners
    • Non-Locking Carabiners
    • Quickdraws
  • Harnesses
    • Men's & Unisex Harnesses
    • Women's Harnesses
    • Youth Harnesses
  • Protection & Hardware
    • Active Pro - Cams
    • Ascenders
    • Belay & Rappel Devices
    • Bolts & Hangers
    • Crash Pads
    • Ice & Snow Protection
    • Passive Pro - Nuts
    • Pitons, Hooks & Aid Pro
    • Pulleys & Swivels
    • Rigging Plates
  • Ropes & Cordage
    • Cordage
    • Dynamic Rope
    • Rope Accessories
    • Static Rope
  • Slings & Webbing
    • Daisy Chains & Tethers
    • Dogbones
    • Slings & Runners
  • Uncategorized
  • Description
  • Additional information
  • Reviews (0)

Super-strong plate for rigging and rescue use

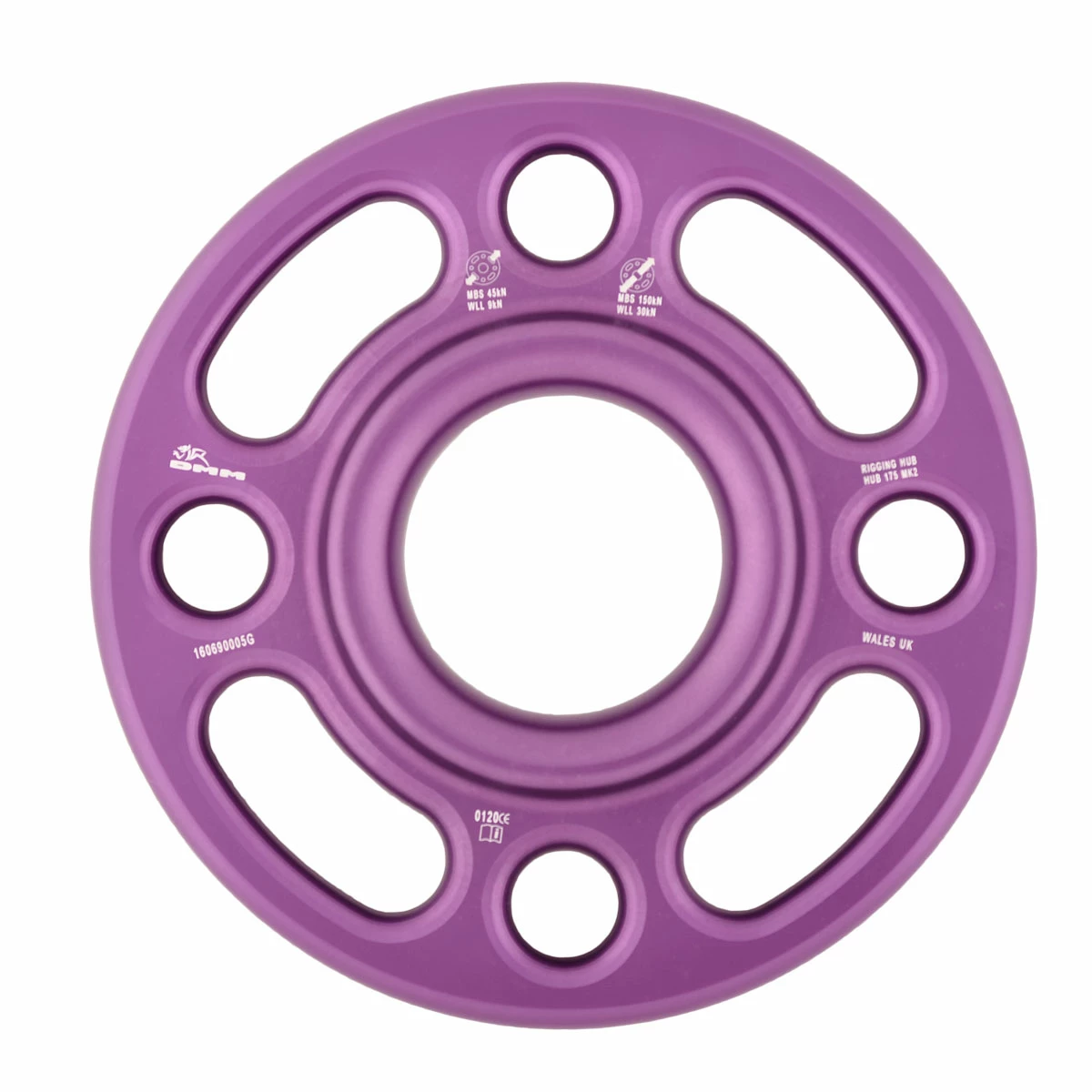

The Large Rigging Hub by DMM features 4 kidney-shaped slots with a super strong central eye and 4 smaller hang points, giving you a number of options and allowing for some serious, complex rigging options. The Large Rigging Hub also has 4 additional clipping eyes. With all of these attachment options, imagination may be the only limiting factor in their use.

Other Features:
• Conforms to EN795(b):2012 and NFPA 1983 (2012 Ed) Class G
• Textile friendly connection points suitable for rope, webbing and opposed connectors
• Central hole can accommodate a running rope and facilitates 3D rigging
• CNC machined from top grade alloy for strength, durability and lightness
• Anodized to BS EN 7599:2010 AA10 Sealed for corrosion protection
• Recommended for rescue and rigging applications
• Individually marked for traceability
Brand Name:

DMM

Force Rating:

Breaking strength of 45kN (outer kidney slots) and 150kN (central eye)

Size (color):

Large

Color:

Purple

Weight:

550 grams (19.4 oz)

Dimensions:

169mm (6.65 in)

Mfg Sku/Part Number:

ARB-HUB175

UPC:

5031290200332
